Hardware

Pocketstats Hub

Coming soon

Automatically capture real-world operational data from hundreds of compatible sensors.

Drag to rotate · scroll to zoom · slide to explode

Stop estimating. Start measuring.

Works with any Zigbee 3.0 sensor

The Hub sits on your network and turns any Zigbee sensor readings into data connections that can be monitored and analyzed with Pocketstats tools.

  • Equipment & machinery Know when machines run hot, idle too long, or cycle outside normal ranges before it becomes a maintenance issue.
  • Door & traffic cycles Every open/close is a data point. Model foot traffic, shift patterns, or equipment cycle counts from real sensor readings.
  • Inventory & storage Monitor conditions in warehouses, stockrooms, or cabinets to catch problems before they affect stock.
  • Cold chain & perishables Catch temperature drift in fridges, freezers, or storage rooms before it becomes a spoilage or compliance event.
Get early access
Specifications

Under the hood

Compute

ESP32-C6-MINI-1-H8 — 8 MB flash, native USB Serial/JTAG, onboard PCB antenna. RISC-V at 160 MHz.

Radios

Zigbee 3.0 coordinator + Wi-Fi 6 + BLE 5.0 — all three from the ESP32-C6 die, no separate Zigbee chip.

Board

40×50 mm, 4-layer, ENIG finish. USB-C on one edge, PCB antenna opposite.

Power

USB-C charging via TP4057 at 300 mA. TPS63031 3.3 V buck-boost with P-channel load-share.

Battery

850 mAh protected 1S LiPo. Rear bay outside the antenna keepout zone.

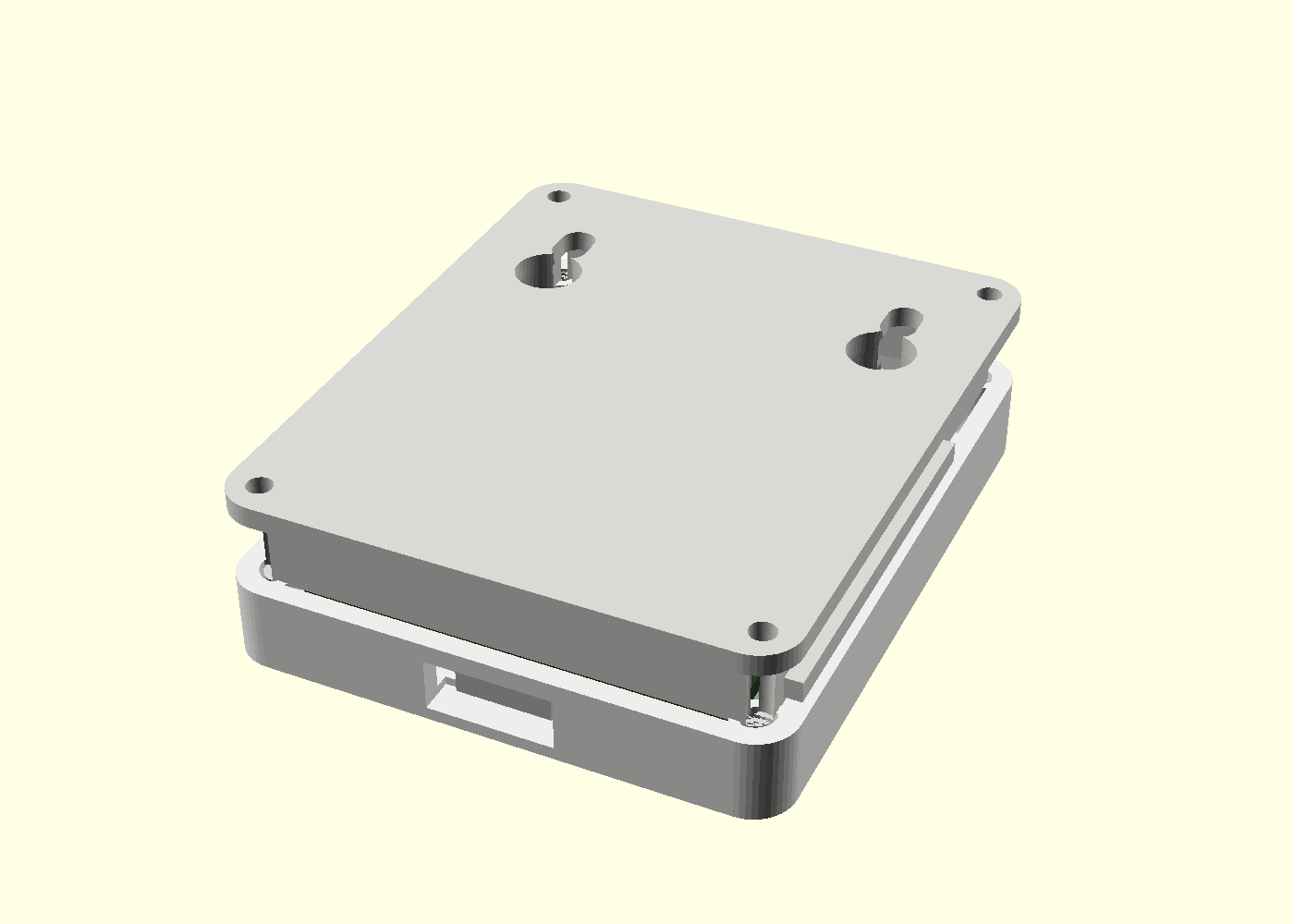

Case

PETG, 52×62×17 mm. Two-piece snap-fit with rear keyholes for wall mount.
